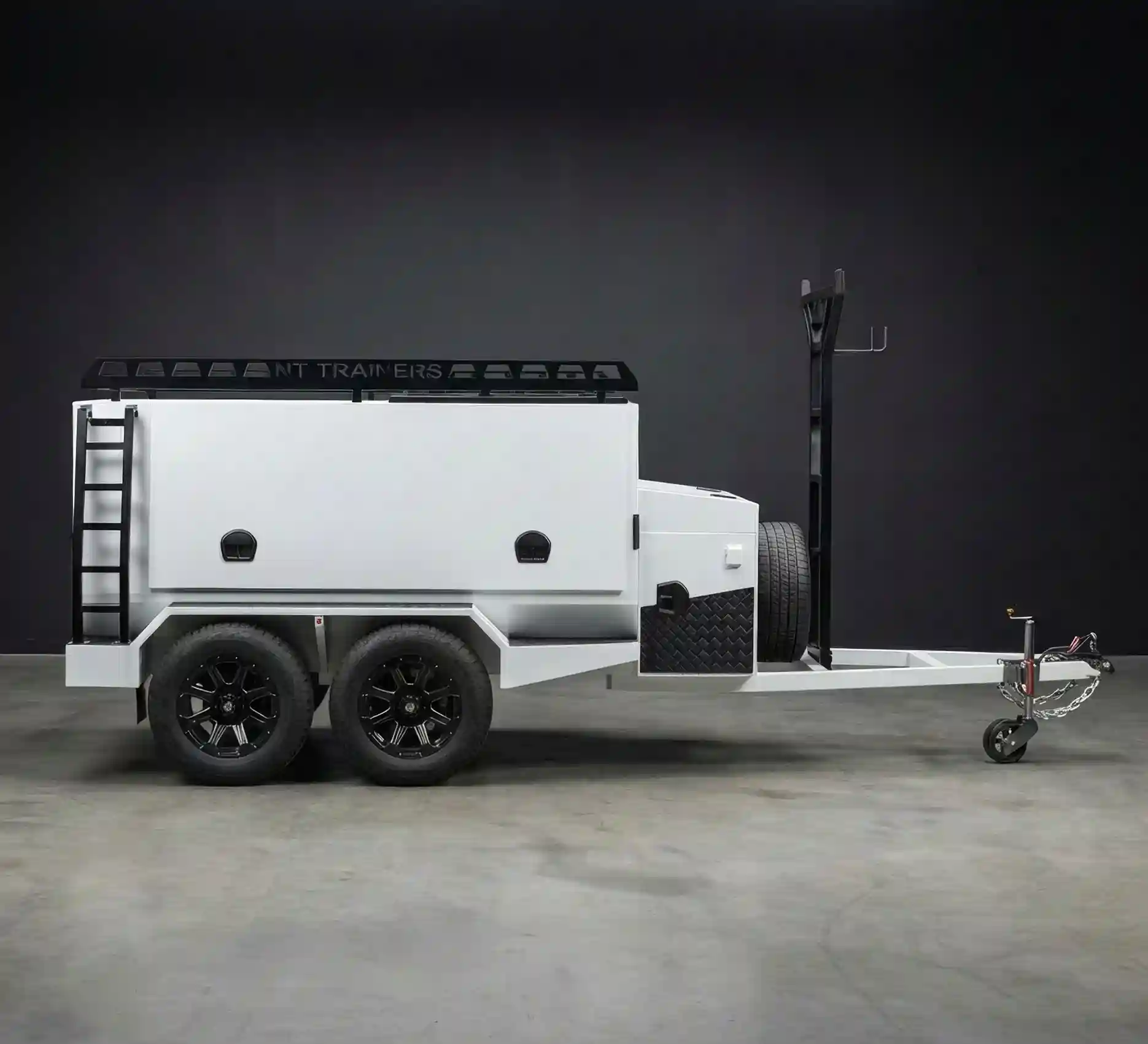

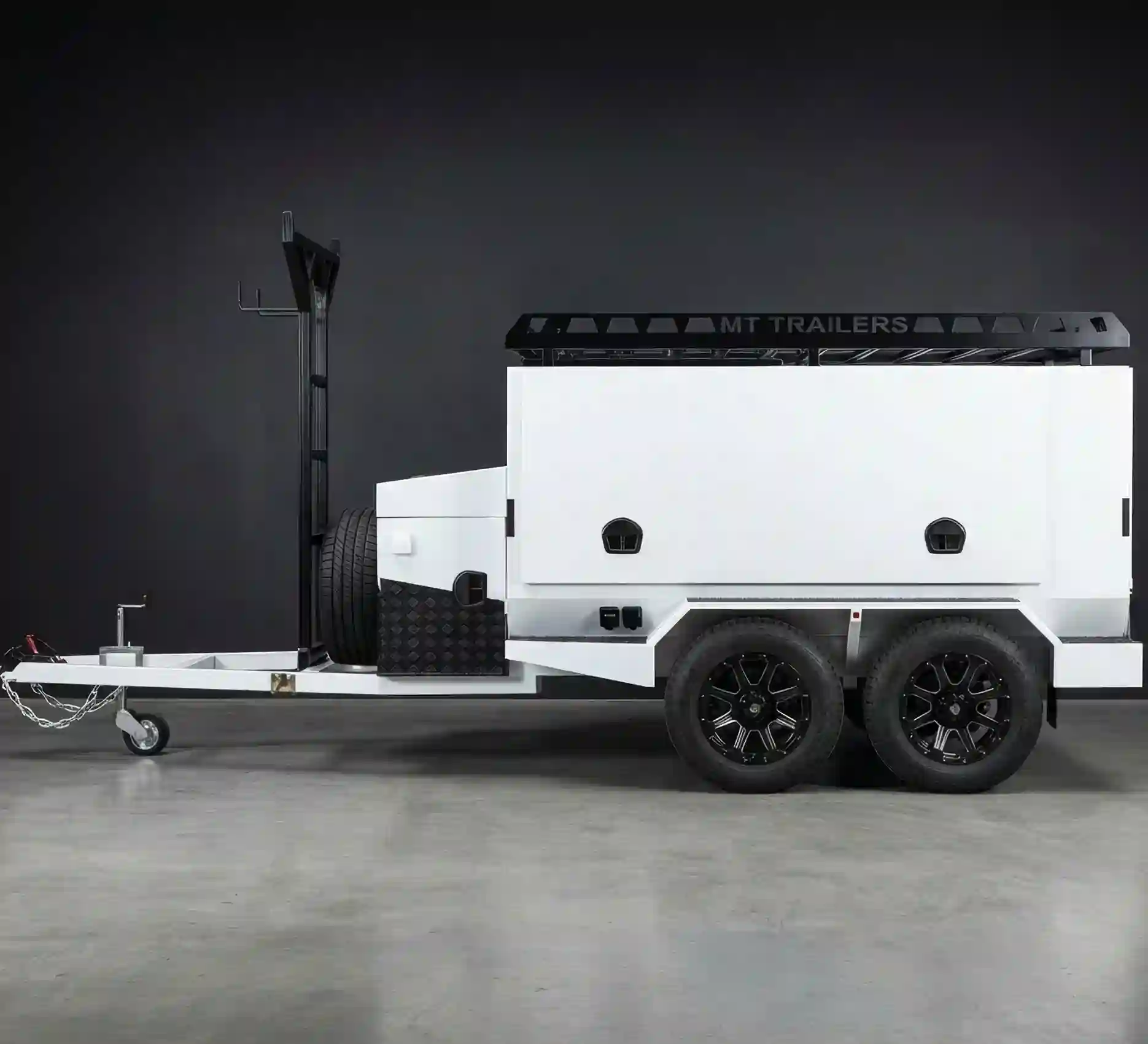

The Tradesman 10x5 is the bigger of our two tradesman trailers, with extra rack length for crews carrying long material and more tools. It has a galvanised steel and aluminium heavy duty build, six internal drawers and 11 compartments, an integrated alarm with central locking, 2 x 100W solar panels, 2 x 100AH batteries and a 2000W pure sine wave inverter. Aggregate trailer mass is 3500kg. Delivered Australia-wide from our Gold Coast yard.
4mm Galvanised Steel 100mm × 50mm RHS Frame
Integrated Alarm & Central Locking System
2 × 100W Solar Panels & 2 × 100AH Batteries
75L Fresh Water Tank & 12V Water Pump
8-Leaf Rocker Roller Suspension
4 Wheel Electric Drum Brakes with Park Brake
JSD-530 Headunit with Bluetooth & MP3
Weather Resistant Construction
Intelligent Electrical Management System (EMS)
2000W Pure Sine Wave Inverter
All Terrain 265/75R16 Tyres
Interior 12V Strip Lighting
240V Input/Output with RCD Protection
Australian Design Regulations (ADR) Compliant
Water Tank
75L Fresh Water Tank
Water Pump
12V EPDM Self-Priming
Up to 3 years structural warranty
Local support from our Gold Coast yard
Professional delivery and setup
Ongoing maintenance support

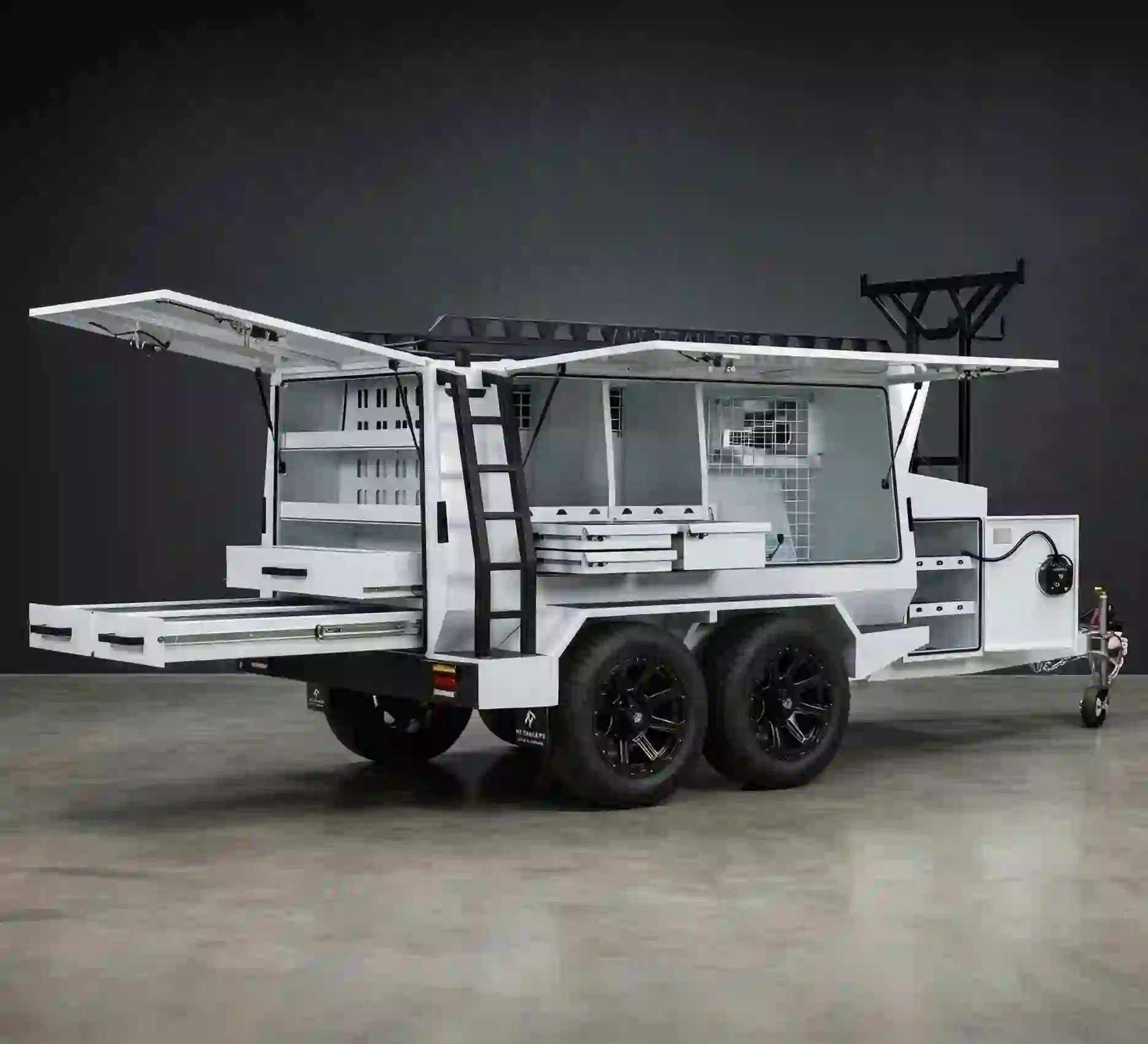

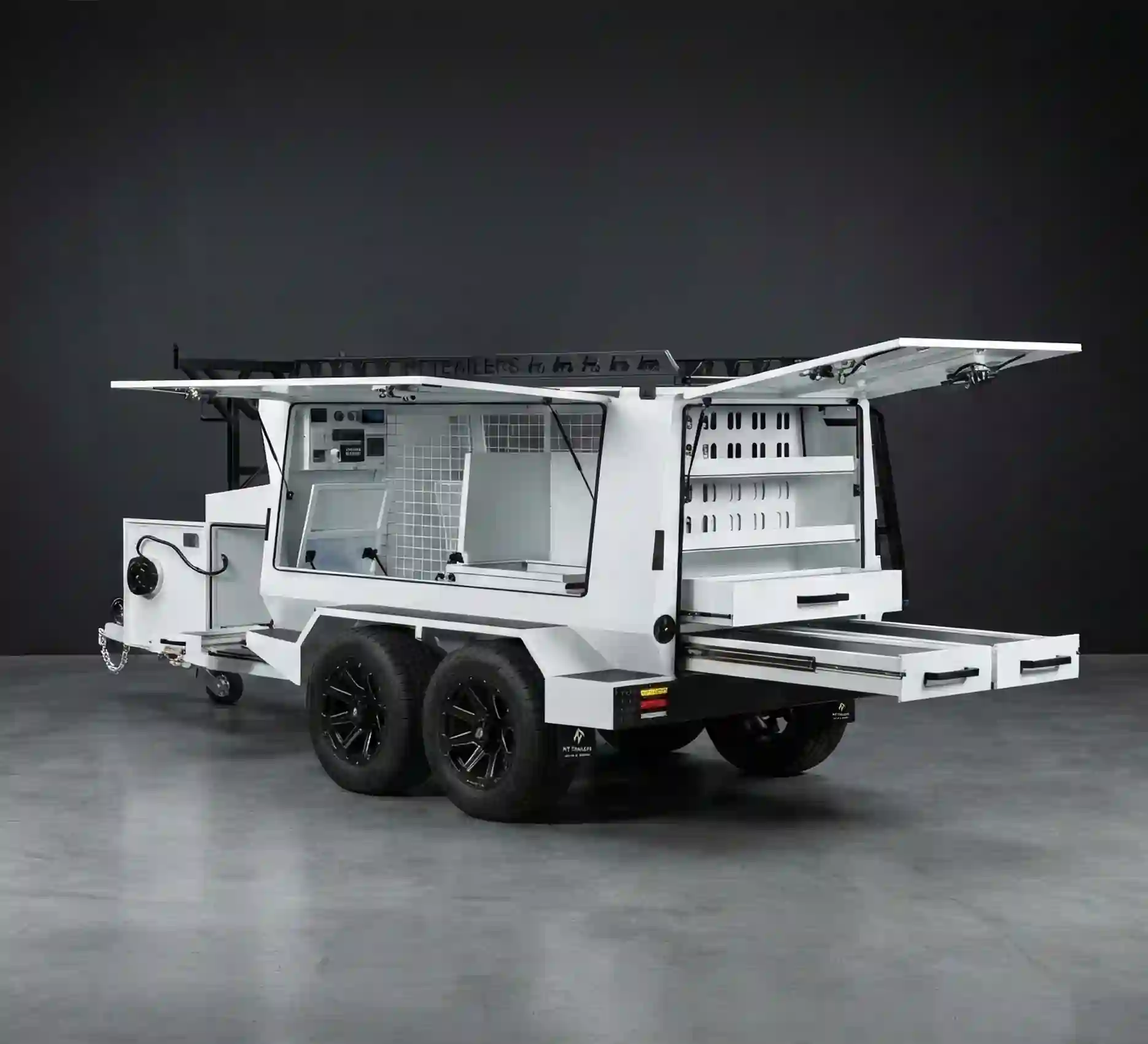

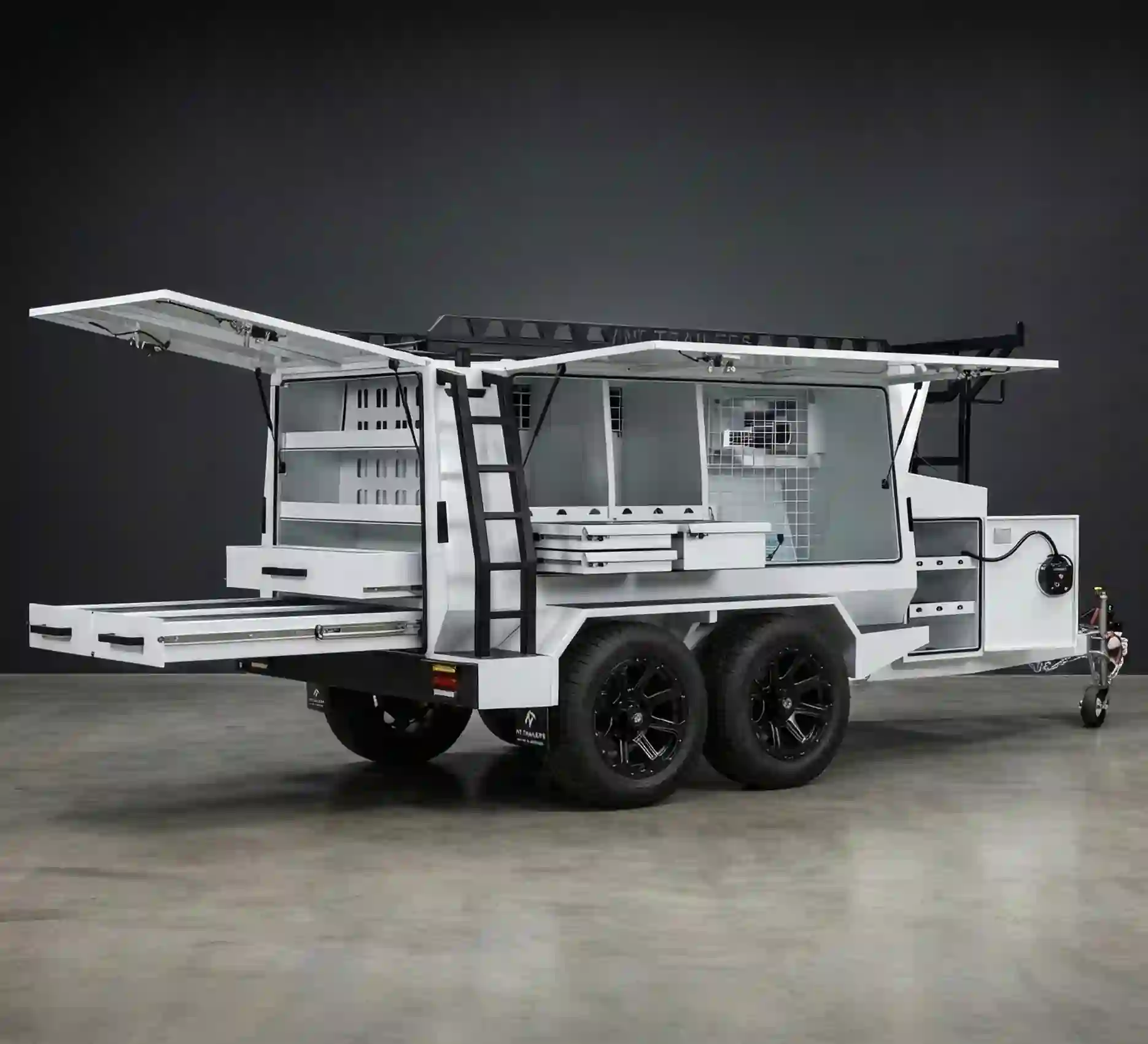

The 10x5 tradesman rack measures 3000mm L x 1400mm W, with extended rack dimensions of 4220mm L x 1000mm W, so long lengths of pipe, timber and ladders go up top. Inside, six large drawers and 11 compartments keep tools organised and easy to find. A fridge slide with power access, checker plate floors and guards, and an integrated alarm with central locking round out a trailer set up for the whole working day.

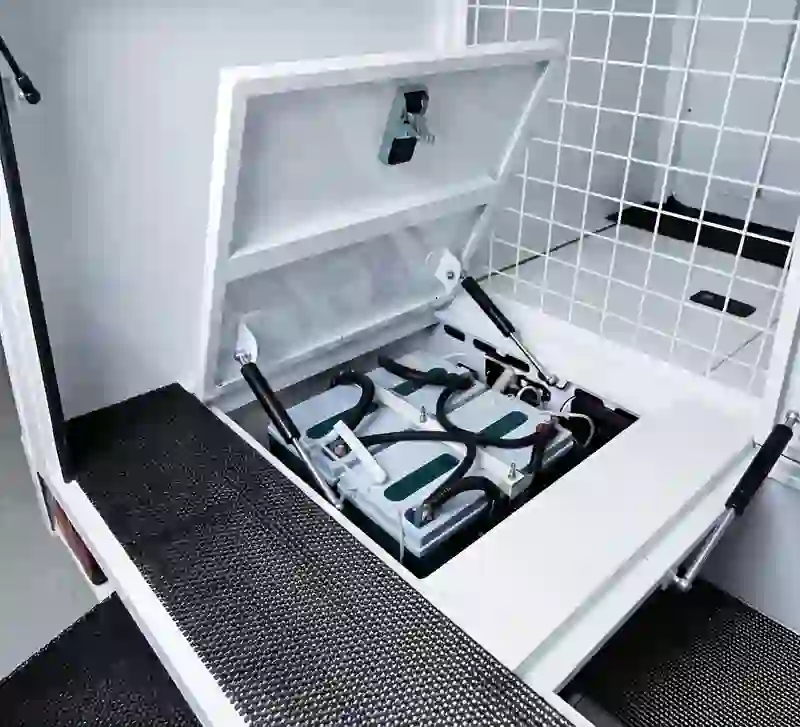

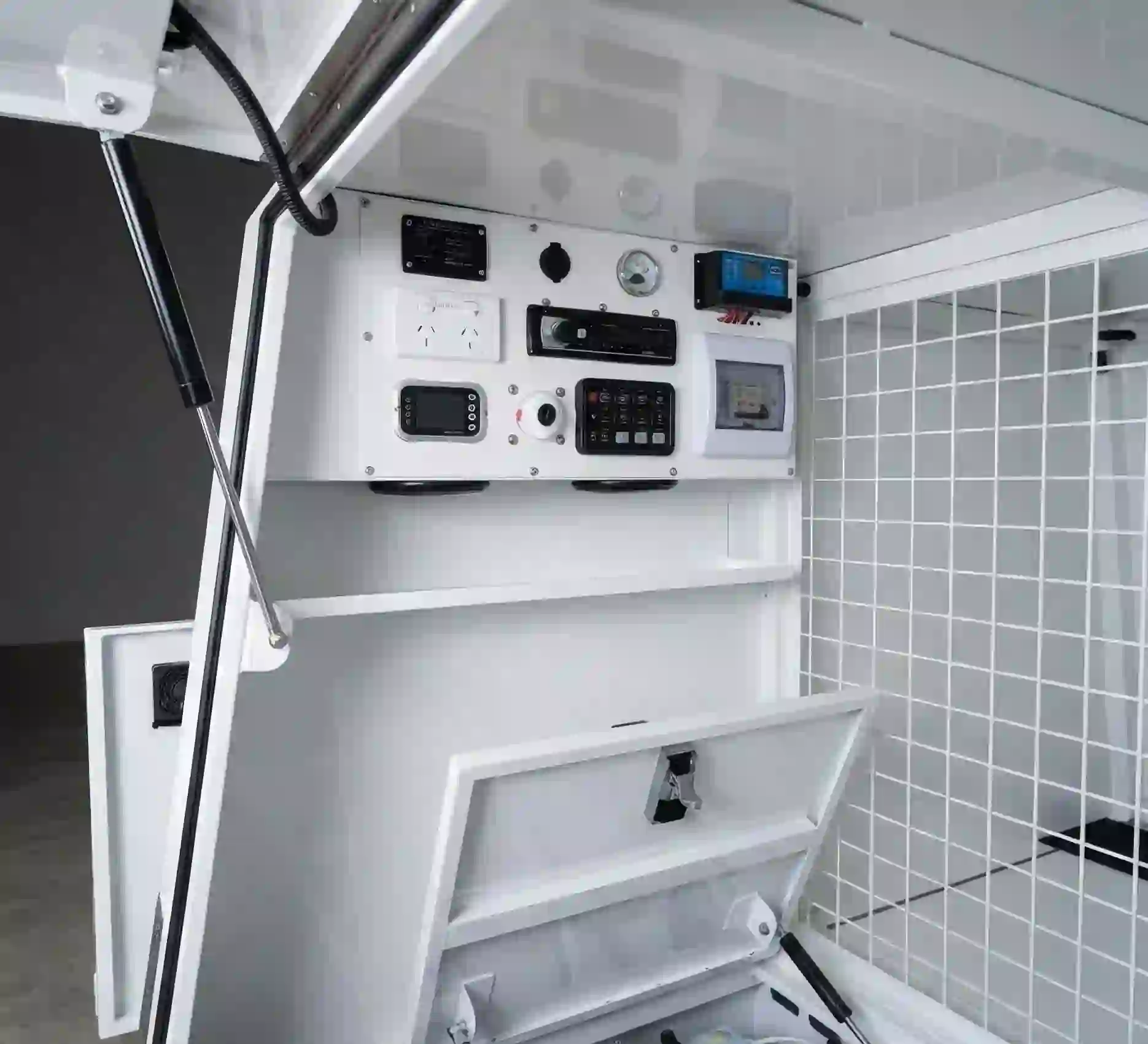

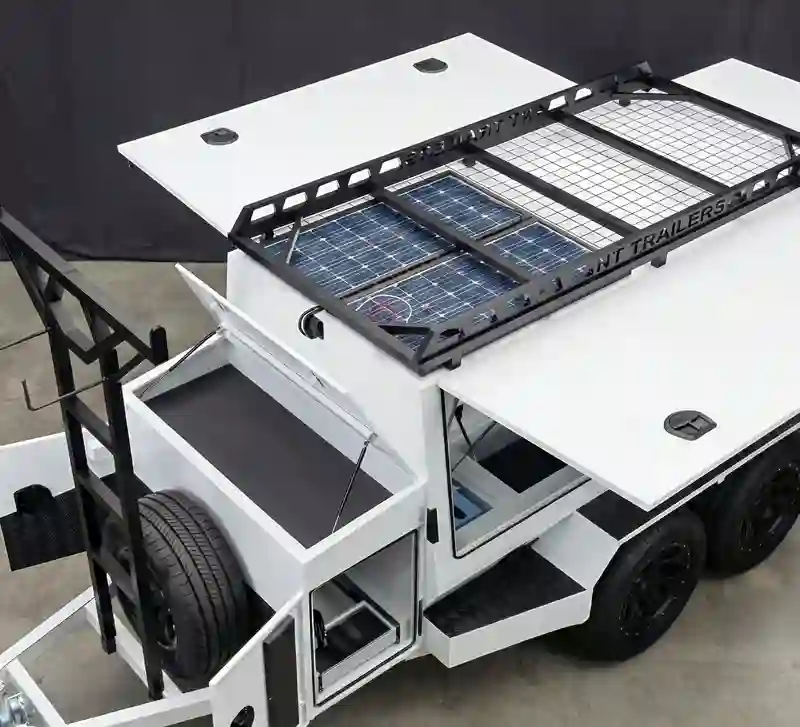

Two 100W monocrystalline solar panels and a 20A PWM controller charge two 100AH sealed lead acid batteries. The 2000W pure sine wave inverter runs three 10A GPOs, protected by built-in RCDs. Charge from mains through the 15A Clipsal inlet and 30A smart 9-stage charger, or from your vehicle via two 50A Anderson plugs. There is 12V strip lighting, a JSD-530 Bluetooth headunit, a 75L fresh water tank and a 12V self-priming pump.

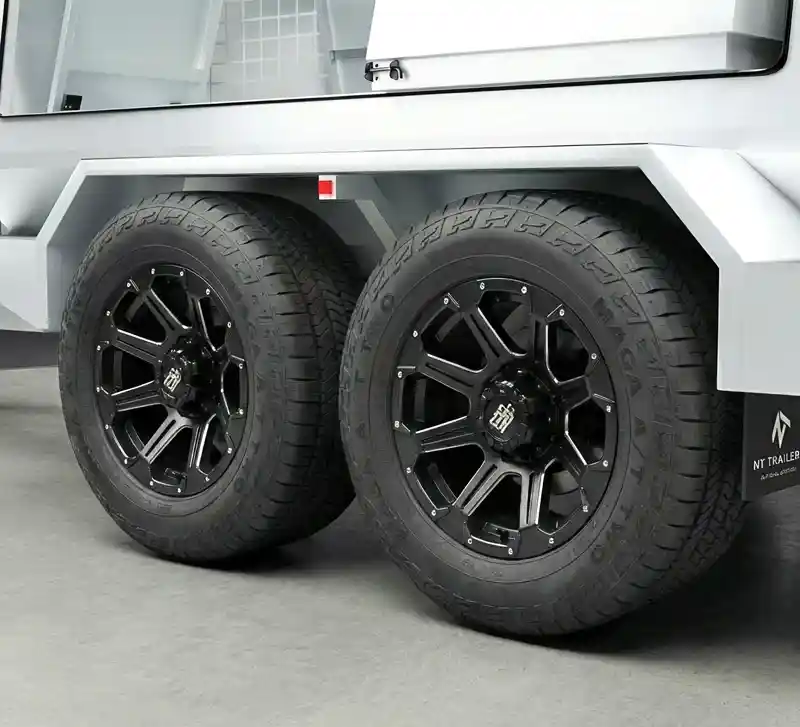

The 10x5 rolls on a high-strength 50mm solid axle rated to 3.5T, rocker roller suspension for smooth towing over rough terrain, and 265/75R16 all-terrain tyres on 16 inch Alloy XD Series rims. It has a 3500kg aggregate trailer mass and an 1800kg tare, a 50mm tow ball coupling and two 12mm safety chains compliant with AS 4177.4 - 1994. A 3-year structural warranty applies.
Your vehicle must be rated to tow at least the trailer's 3500kg aggregate trailer mass (ATM) if you plan to load it to the limit. The 10x5 weighs 1800kg tare before any gear goes in. Check your vehicle's towing capacity and tow ball rating in the owner's manual before you buy.
Yes. It has 4-wheel electric drum brakes, so your tow vehicle needs an electric brake controller installed before you hit the road. Talk to our team if you need one fitted.
The tradesman rack is 3000mm L x 1400mm W, and the extended rack dimensions are 4220mm L x 1000mm W. That is 600mm longer than the 8x5 on both measurements.
This trailer comes with a 3-year structural warranty from the date of original purchase, covering defective materials or workmanship. Wearable parts such as the jockey wheel, bearings, tyres, wheels and brake pads are excluded. See our Warranty page for full terms.
Yes. We deliver Australia-wide from our Gold Coast yard, with delivery quoted to your postcode. You can also inspect and collect from 11 Jade Dr, Molendinar QLD 4214. Call 1300 798 100 for a quote.
