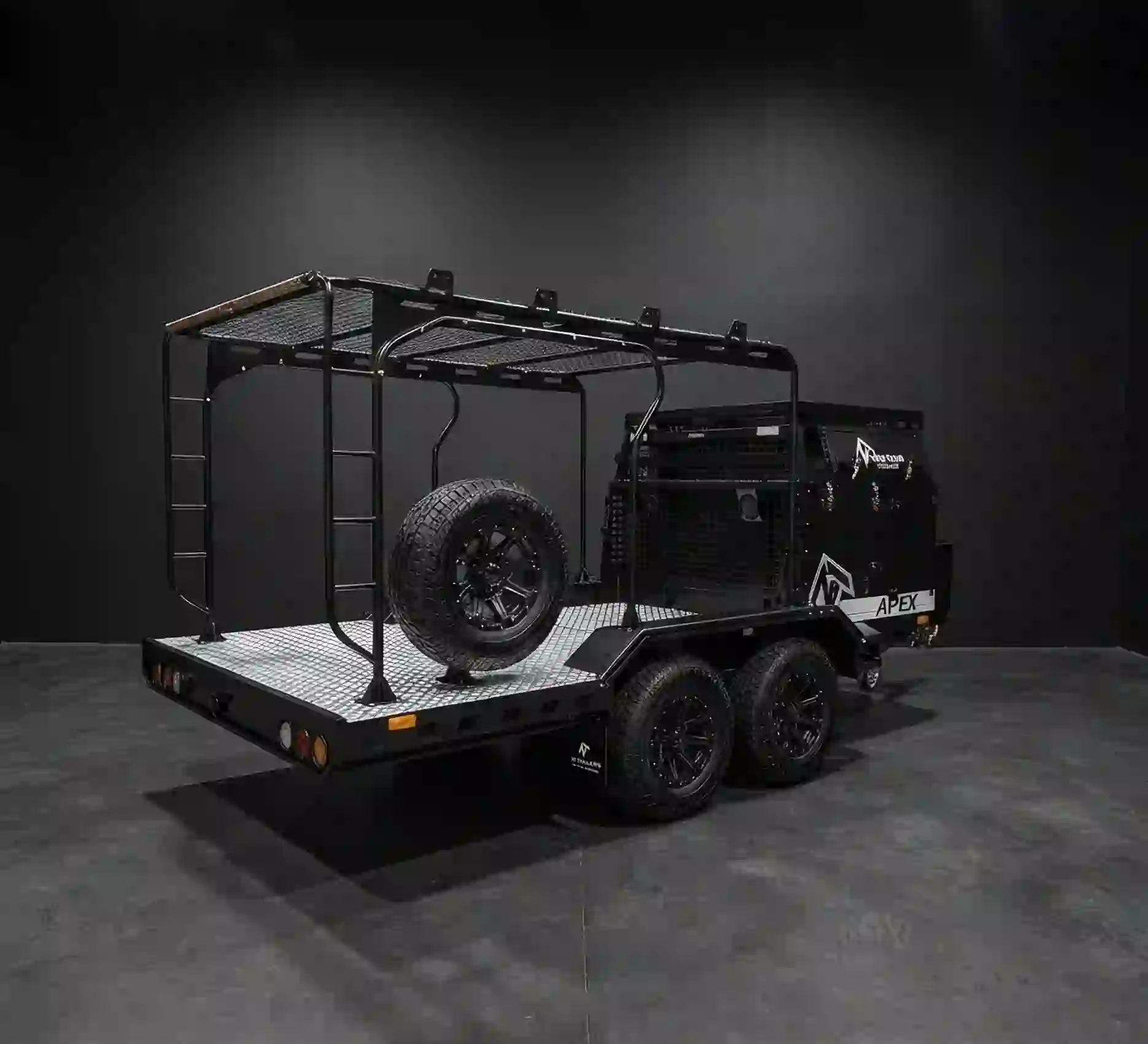

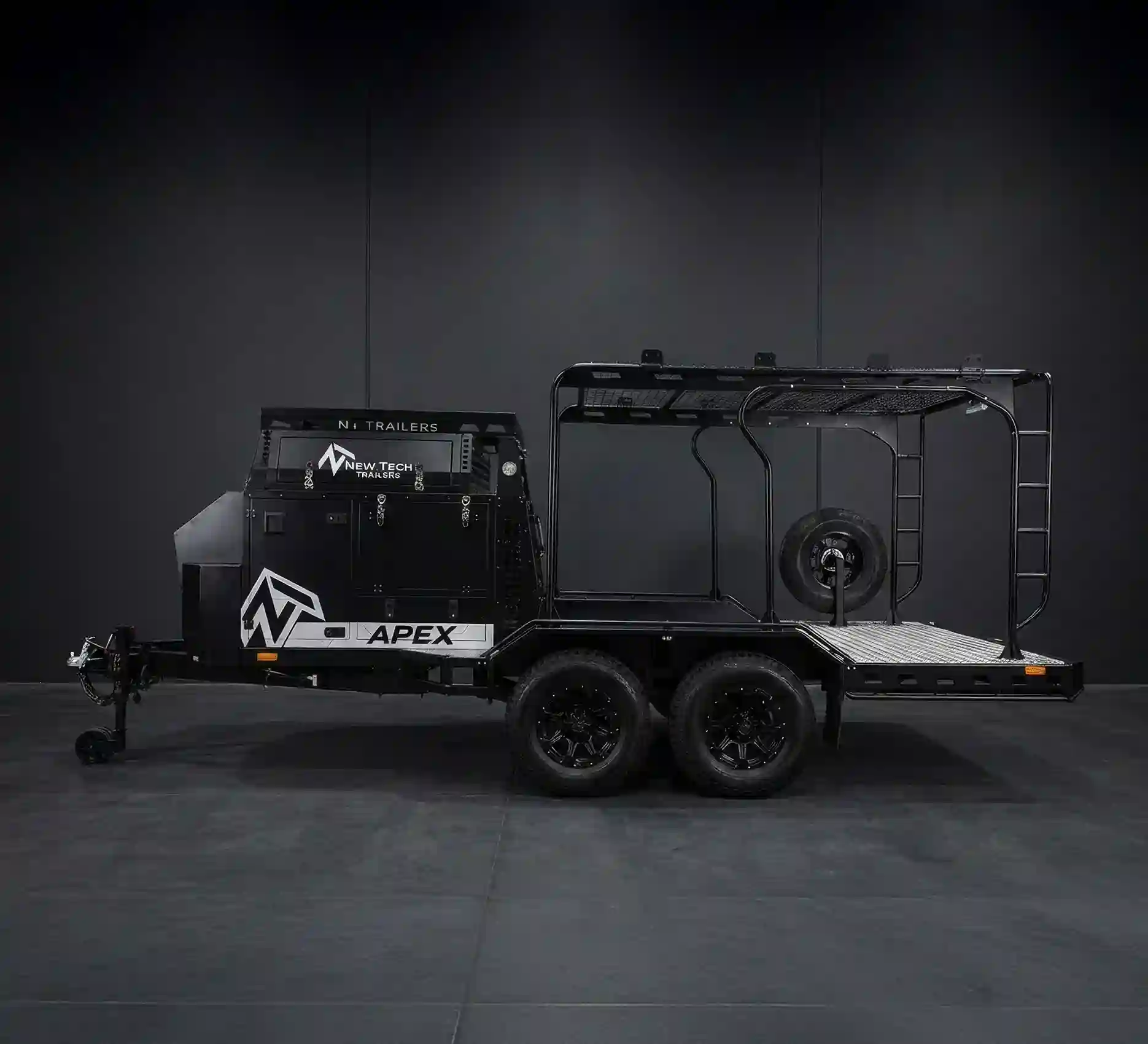

The Apex Toy Hauler is built for weekends that start with loading the bikes. A large rear tray carries motorbikes, quads or any adventure toys, while the enclosed front section keeps gear locked away. Fully independent off-road suspension, all-terrain tyres and a galvanised steel and powdercoat finish are made for rough tracks. Add a slide-out kitchen, 12V and 240V power and solar, and you have a self-contained base camp wherever you pull up.
Large rear tray for carrying motorbikes, quads or any adventure toys
Pull-out kitchen with Dometic stove and sink - great for camping
Top front rack built to house a 2-person roof top tent plus awnings
Galvanised Steel & Powdercoat Finish
All Terrain Tyres
2 x 100AH Batteries
2000W Inverter
Interior Strip Lighting
240V Output for power on the go
Intelligent Electrical Management System (EMS)
2 x Underbody Stored Ramps
Gas Water Heater
All Terrain Tyres
2 x 100AH Batteries
2 x External Speakers with Bluetooth Headunit
12-month structural warranty (3-months for commercial use)
Local support from our Gold Coast yard
Professional delivery and setup
Ongoing maintenance support

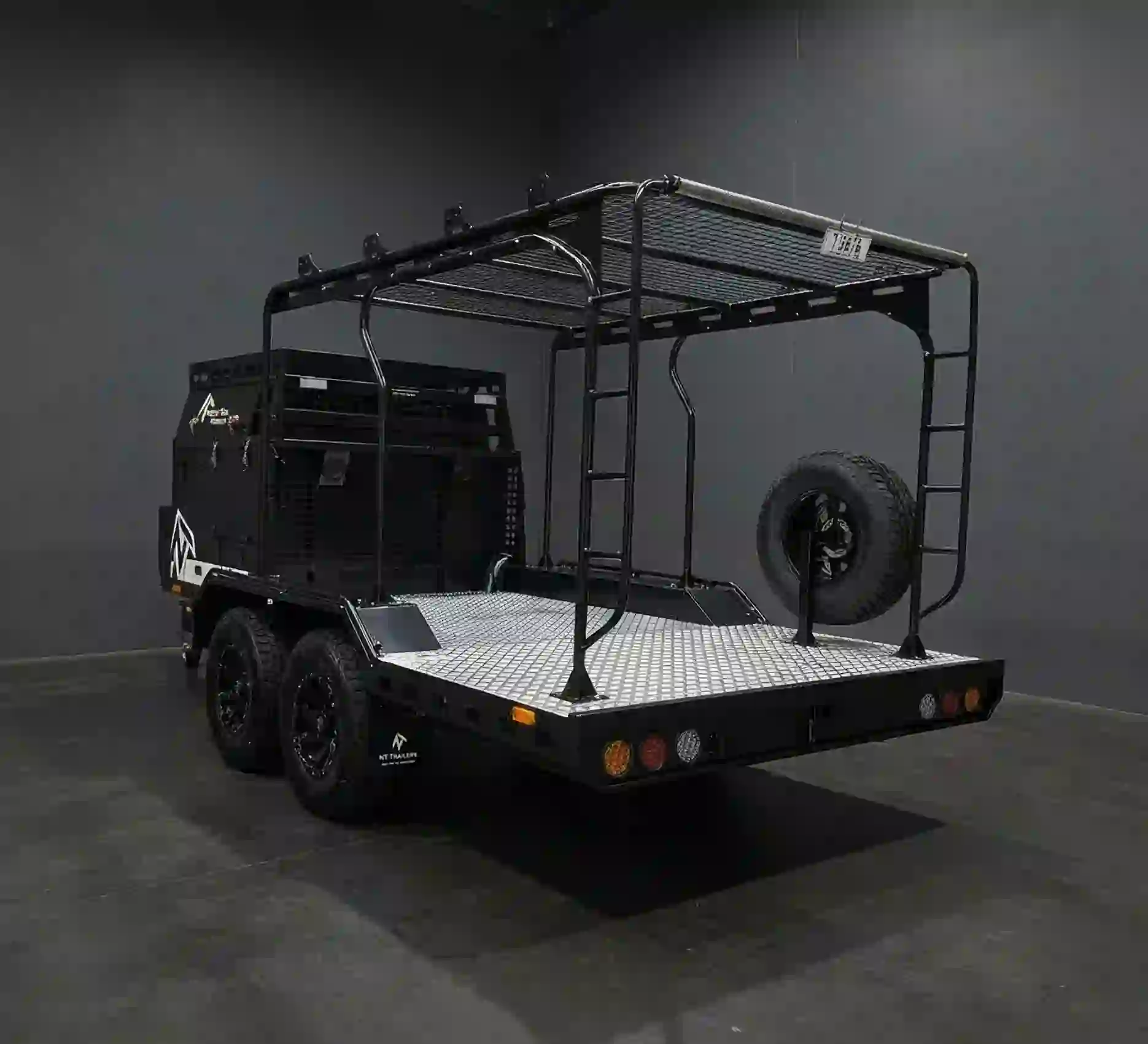

The rear cargo rack measures 2440 x 1800, with two underbody stored ramps for loading motorbikes, quads or ATVs. Up front, a 1.5m x 1.5m tool box gives you secure storage, with shelving and drawers to keep things organised. Two 9kg gas bottle storage racks are built in, and the top front rack is built to house a 2 person roof top tent comfortably, as well as additional awnings.

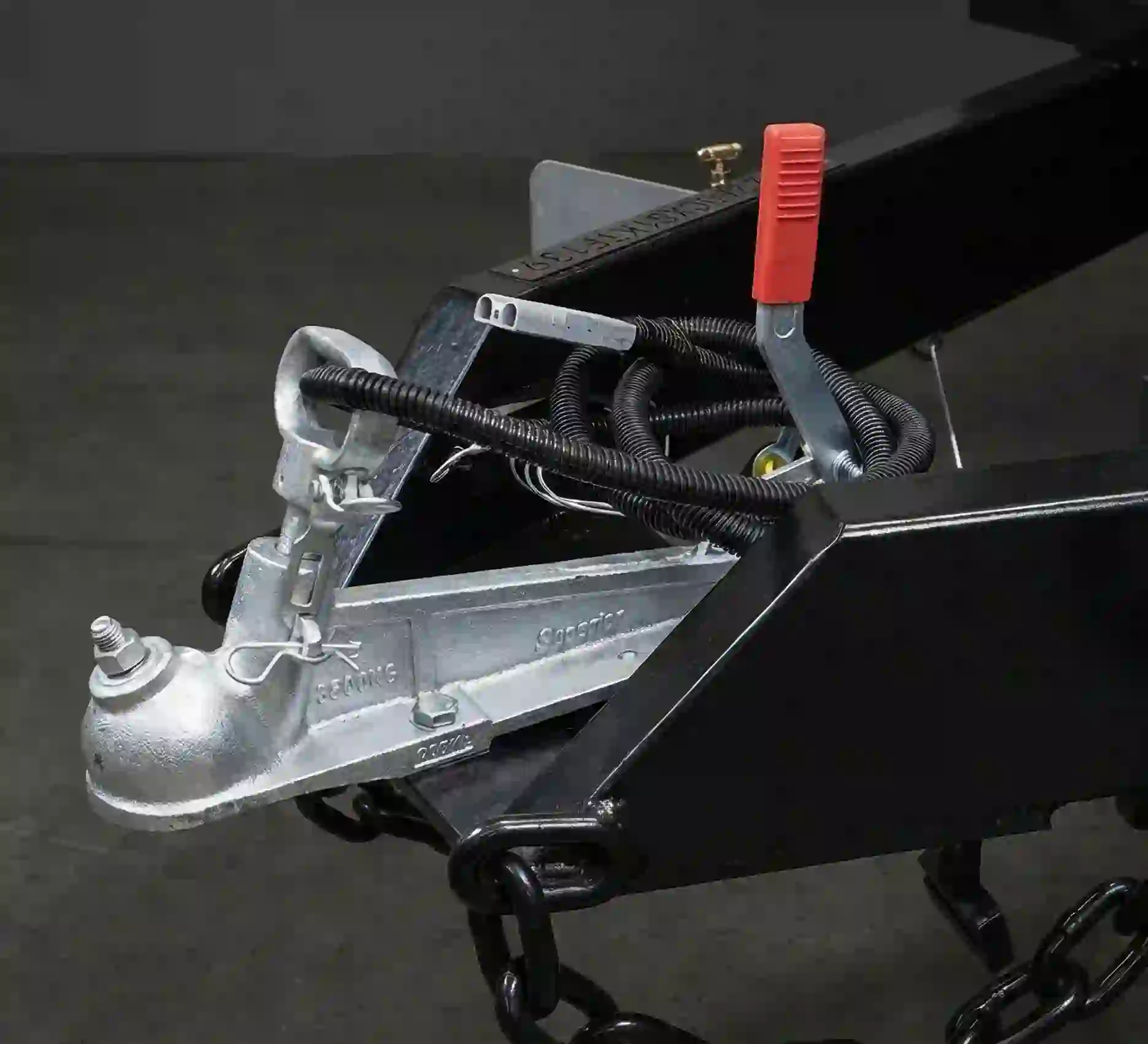

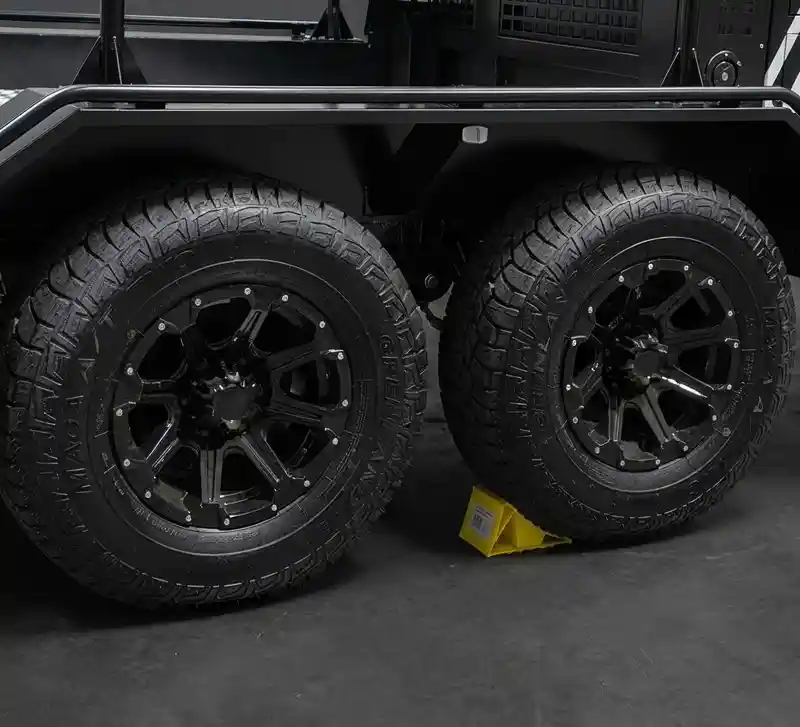

The Apex runs on a heavy-duty chassis with fully independent off-road suspension, spring and shock absorber rated to 3600kg, and a high-strength 50mm solid axle rated 3.5T. It sits on 265/75R16 all-terrain tyres and Alloy XD Series 16" rims. Four wheel electric drum brakes with park brake, a 50mm tow ball and 2 x 12mm safety chains (AS 4177.4 - 1994 compliant) round out the running gear.
A 100W monocrystalline solar panel with a 20A PWM controller feeds 2 x 100AH sealed lead acid batteries, topped up by a 30A ACDC smart 9-stage charger. The 2000W pure sine wave inverter runs 2 x 10A GPOs, with a 15A Clipsal inlet, RCD protection and an EMS. 12V strip lighting and 2 external speakers with a Bluetooth headunit set the mood, and the slide-out kitchen has a stainless-steel sink and Dometic gas stove top.
Your vehicle must be rated to tow at least the trailer's Aggregate Trailer Mass, listed on the brochure as 3000kg, and have a 50mm tow ball. Check your vehicle's towing capacity and tow ball rating before you buy, and call us on 1300 798 100 if you are unsure.
Yes. The Apex has 4 wheel electric drum brakes with park brake, so your tow vehicle needs an electric brake controller fitted to operate them.
It is built on a heavy-duty chassis with fully independent off-road suspension and 265/75R16 all-terrain tyres, designed for rough terrain. As with any trailer, drive to the conditions and stay within the rated loads.
The Apex carries a 12-month structural warranty from the date of original purchase (3 months for commercial use), covering defective materials or workmanship. Wearable parts such as the jockey wheel, bearings, tyres, wheels and brake pads are excluded.
Yes. We deliver Australia-wide from our Gold Coast yard at 11 Jade Dr, Molendinar QLD. Delivery is quoted to your postcode, so contact us for a quote.
