The Advanced Builders Trailer is an 8x5, 3000KG trailer built for tradies who want their tools, materials and power in one place. It runs on a galvanised steel and aluminium heavy duty build with 8-leaf rocker roller suspension and a 50mm solid axle rated to 3.5T. A 2400mm x 1500mm builders rack carries long materials, and the onboard 100W solar, dual 100AH batteries and 2000W pure sine wave inverter keep you powered on site.
8 x 5 Model - 3,000kg ATM
All Terrain Tyres
Large Rack for Materials
100W Solar Panel
2 x 100AH Batteries
2000W Inverter
Interior Strip Lighting
240V Output for power on the go
Fridge Slide with access to power
Intelligent Electrical Management System (EMS)
Shelving and 3 x Underbody Drawers
Galvanised Steel Build
T Rack
ARK XO750 Jockey Wheel
43L Coolman Fridge
SignWriting 3Door
Elecbrakes EB2 Brake Control
12M QLD REGO
Marine carpet
$495
$450
$695
$1200
$750
$280
$880
Up to 3 years structural warranty
Local support from our Gold Coast yard
Professional delivery and setup
Ongoing maintenance support

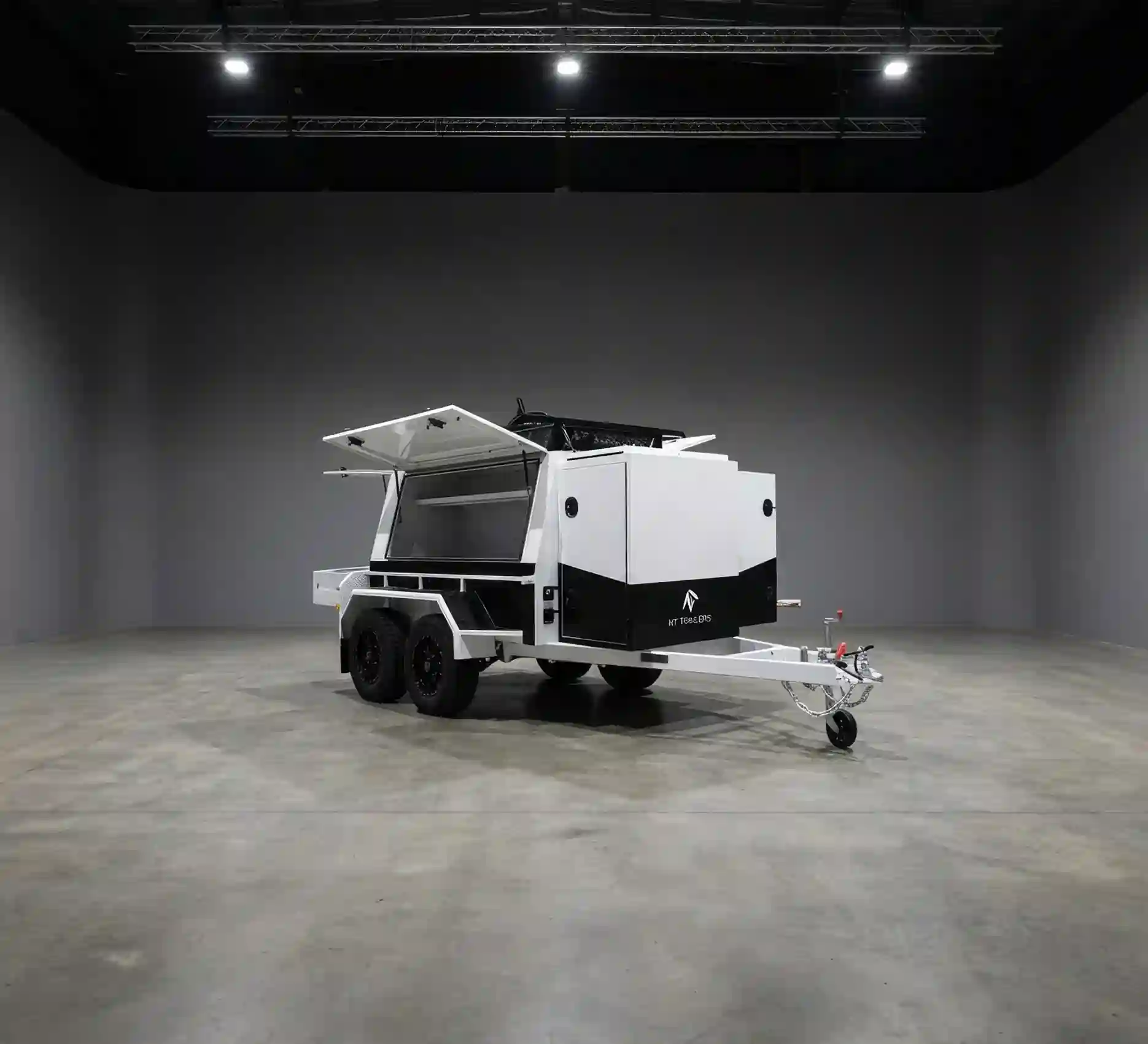

The trailer sits on a fully welded, heavy-duty frame with a galvanised steel and aluminium heavy duty build. An 8-leaf rocker roller suspension and high-strength 50mm solid axle (rated 3.5T) carry the 3000KG ATM, with a 1500KG tare. It rolls on 235/75R15 all-terrain tyres and Alloy XD Series 15" rims, has checker plate floors and guards, and hooks up with a 50mm tow ball coupling and twin 10mm safety chains. Choose powdercoated black, white or silver.

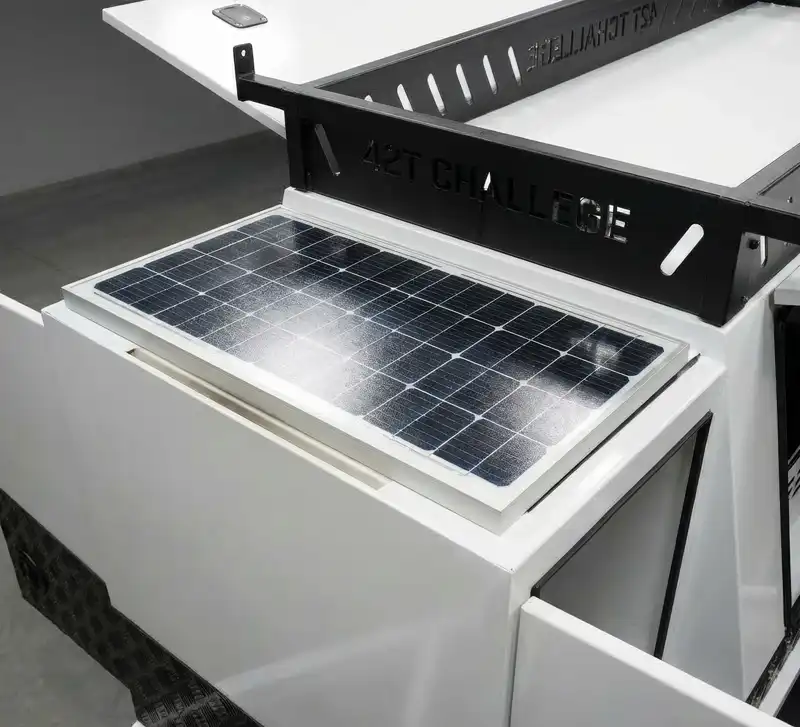

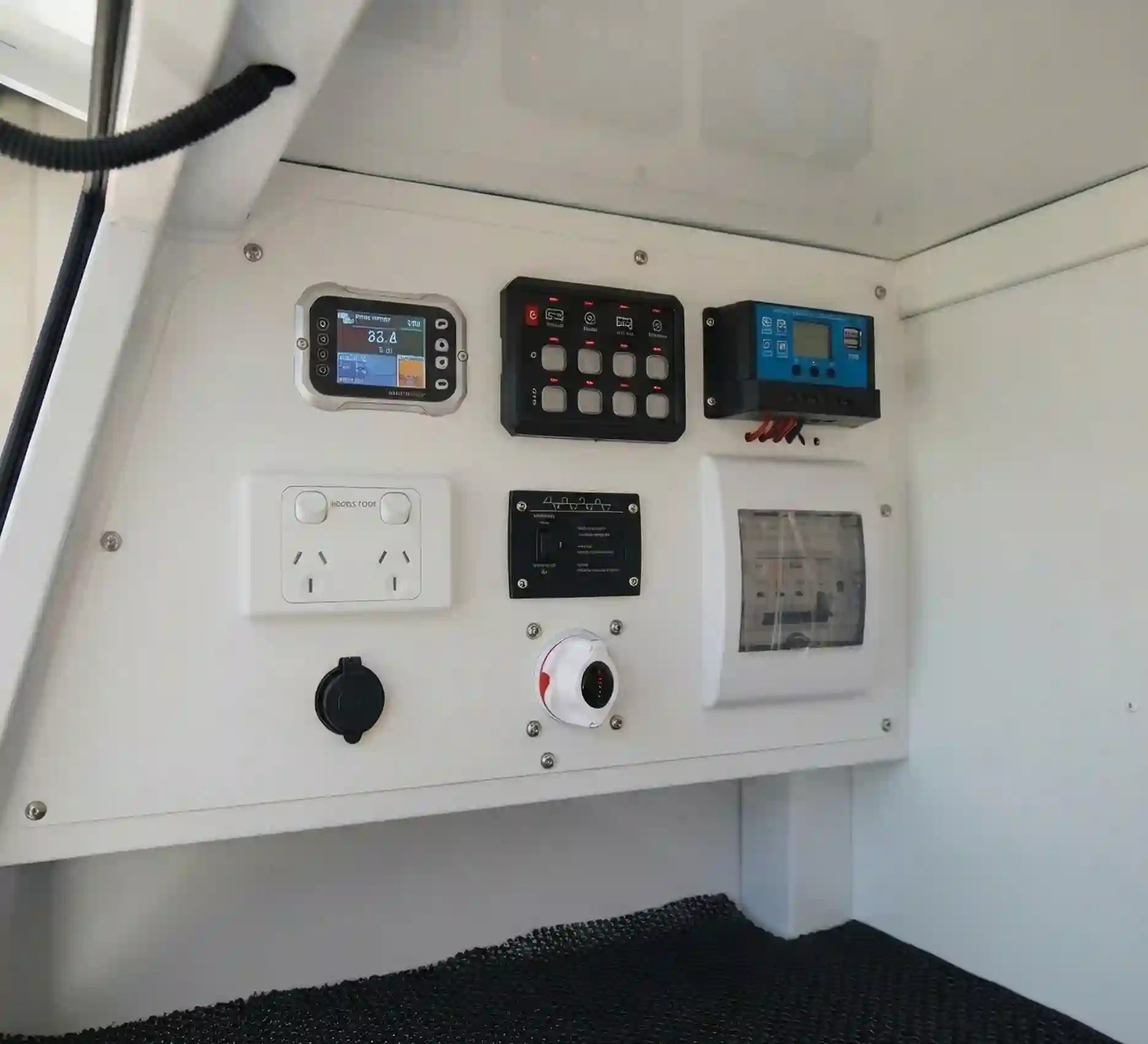

The integrated power system pairs a 100W solar panel with two 100AH sealed lead acid batteries and a 2000W pure sine wave inverter. Three 10A GPOs run tools and appliances, protected by a built-in RCD safety system. A 30A AC/DC smart 9-stage charger looks after the batteries, a 15A Clipsal inlet socket takes 240V input when it is available, and two 50A Anderson plugs add 12V input options. Interior 12V strip lighting and a fridge slide with power access round it out.

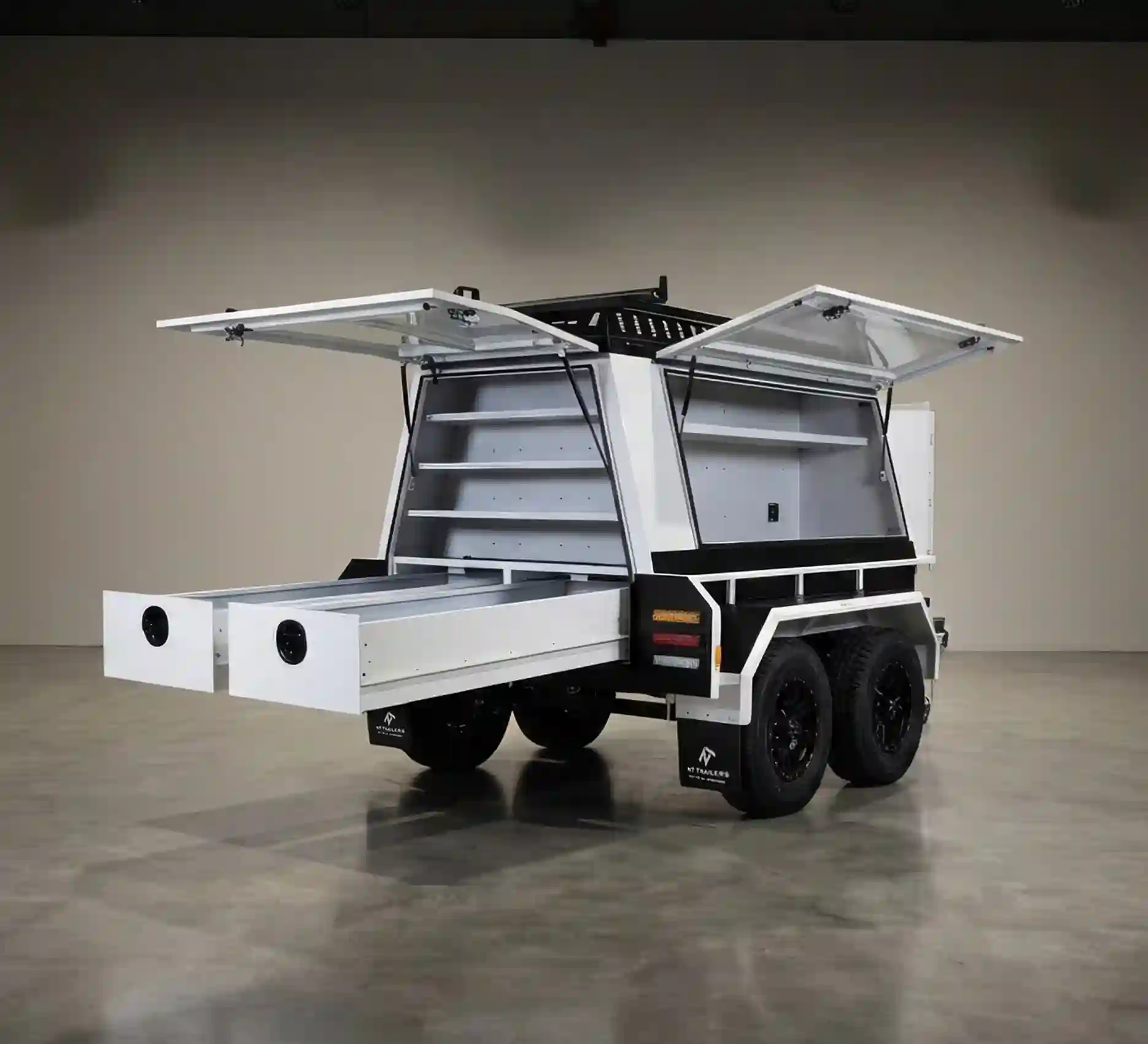

Set shelving and three underbody drawers keep tools and gear organised, while the 2400mm x 1500mm builders rack takes timber, pipe and other long materials, with an optional 3600mm extended tradesman rack. It suits builders, carpenters, plumbers and electricians who work away from mains power. If you do not need the fit-out and power package, the Essential Builders Trailer is the same platform without it. We deliver Australia-wide from our Gold Coast yard.
It is an 8x5 trailer with a 3000KG aggregate trailer mass (ATM) and a 1500KG tare mass. The builders rack measures 2400mm L x 1500mm W, with an optional 3600mm extended tradesman rack.
Your vehicle must be rated to tow at least the trailer's 3000KG ATM, and the coupling suits a 50mm tow ball. Check your vehicle's towing capacity and tow ball rating before you buy.
Yes. It has 4-wheel electric drum brakes, so your vehicle needs an electric brake controller. An Elecbrakes EB2 brake control is listed as an available extra, so ask us to include it in your quote.
A 100W solar panel, dual 100AH sealed lead acid batteries and a 2000W pure sine wave inverter supply three 10A GPOs, protected by a built-in RCD. A 30A smart 9-stage charger, a 15A Clipsal 240V inlet and two 50A Anderson plugs handle charging and input.
Yes, we deliver Australia-wide from our Gold Coast yard at 11 Jade Dr, Molendinar - call 1300 798 100 for a delivery quote to your postcode. The trailer has a 3-year structural warranty.
