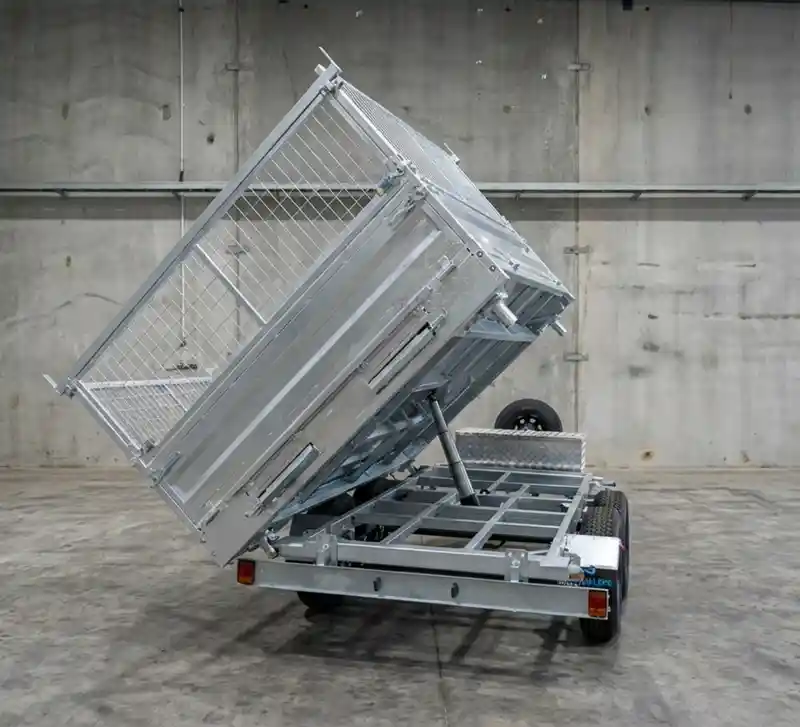

Available in 10x6 and 12x7, our hydraulic tipper is a heavy-duty, hot-dip galvanised trailer built to move soil, gravel, mulch and green waste without the shovel work. Both sizes have a 3,500kg ATM and a 5-tonne, 5-stage hydraulic ram running off a 12V battery with a solar charger, so it tips at the push of a button. Pick up from our Gold Coast yard or have it delivered Australia-wide.
3,000 x 1,800mm tray, 400mm sides, rear barn door. Payload up to 2,200kg.
3,600 x 2,100mm tray, 300mm sides. Payload up to 2,000kg.
Hot-Dip Galvanised Construction
1800mm Drawbar - 150mm x 50mm RHS
Brake Away System for Additional Safety
Electric Brakes
Load Ramps Available on Request
Full Battery Setup Plus Solar Panel
Multiple Tipper Designs Available
12V Electric Battery Tipping System
Australian Design Regulations (ADR) Compliant
Fully Hot Dipped Galvanised Finish

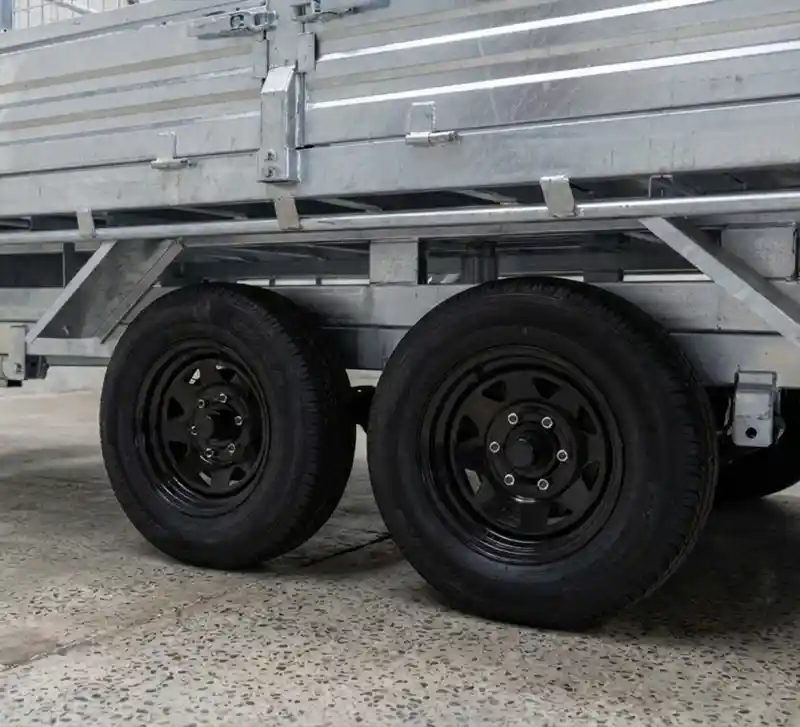

Dual 50mm Solid Dexter Axle with 12-inch Electric Brakes
Rear Barn Door (10x6) - Facilitates Easy Tipping
5 Tonne - 5 Stage Ram Fitted

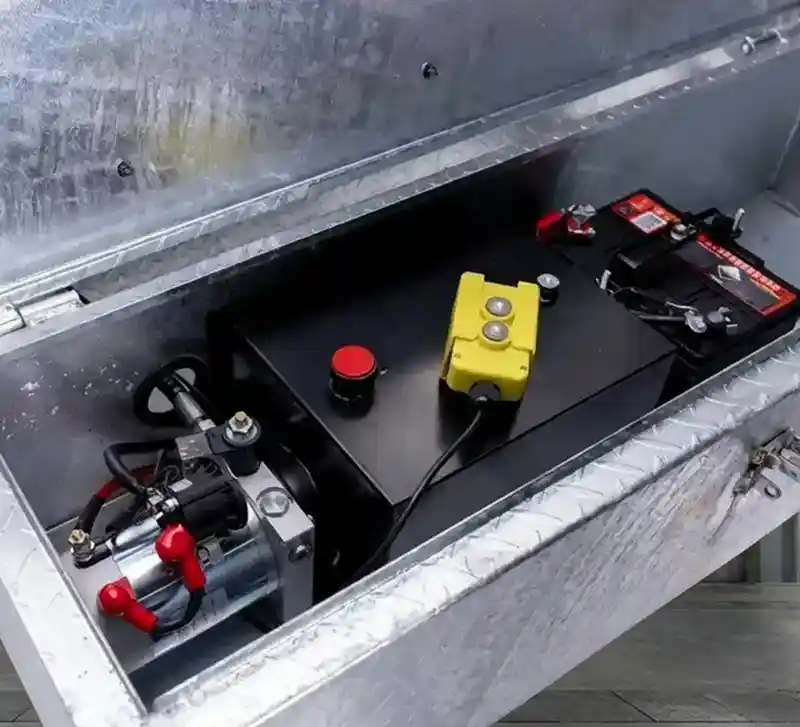

Aluminum Toolbox & Hydraulic Pump
LED Lighting Fitted Plus 7 Pin Plug

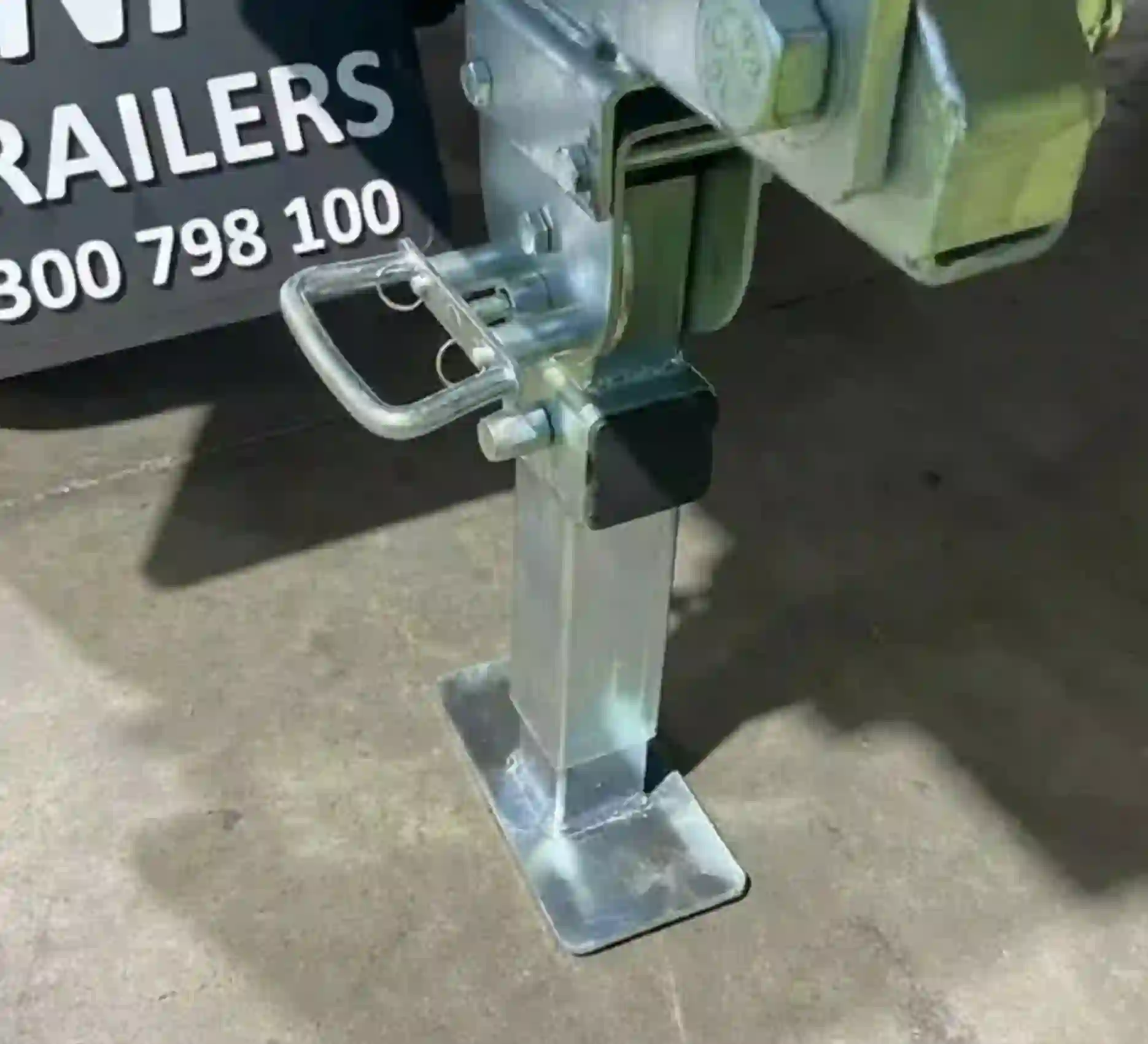

Heavy Duty Jockey Wheel
12V battery tipping system with solar panel charger, plus LED lighting with a 7-pin plug.
Drawbar
1,800mm - 150mm x 50mm RHS
Braking System
12-inch Electric Brakes on All Wheels
Hydraulic System
5 Tonne - 5 Stage Ram
Safety Features
Brake Away System
Power System
Full Battery Setup with Solar Panel
Electrical
LED Lighting with 7-Pin Plug
Construction
Hot-Dip Galvanised Finish
Compliance
ADR Compliant - Australian Design Regulations
1-year warranty
Local support from our Gold Coast yard
Professional delivery and setup
Ongoing maintenance support

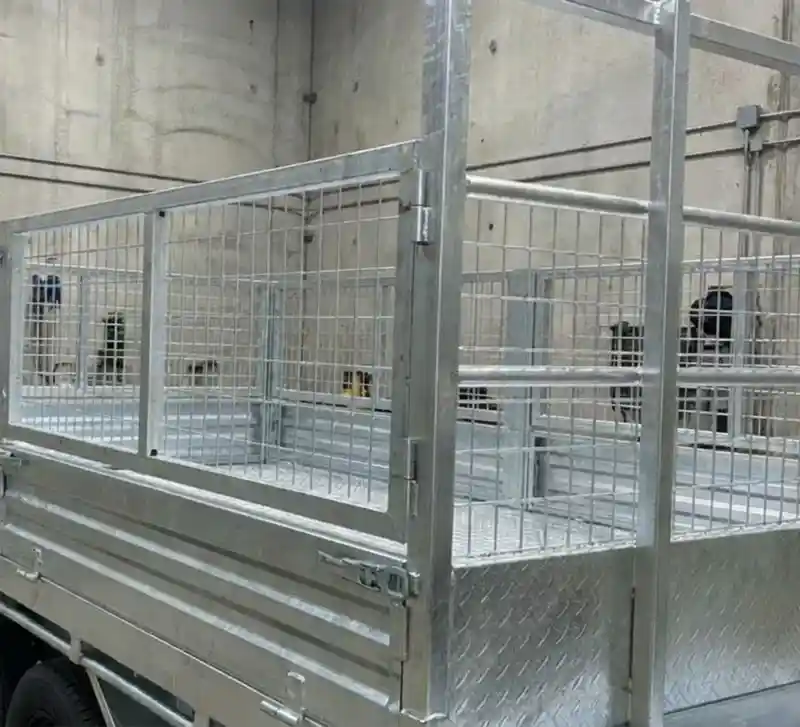

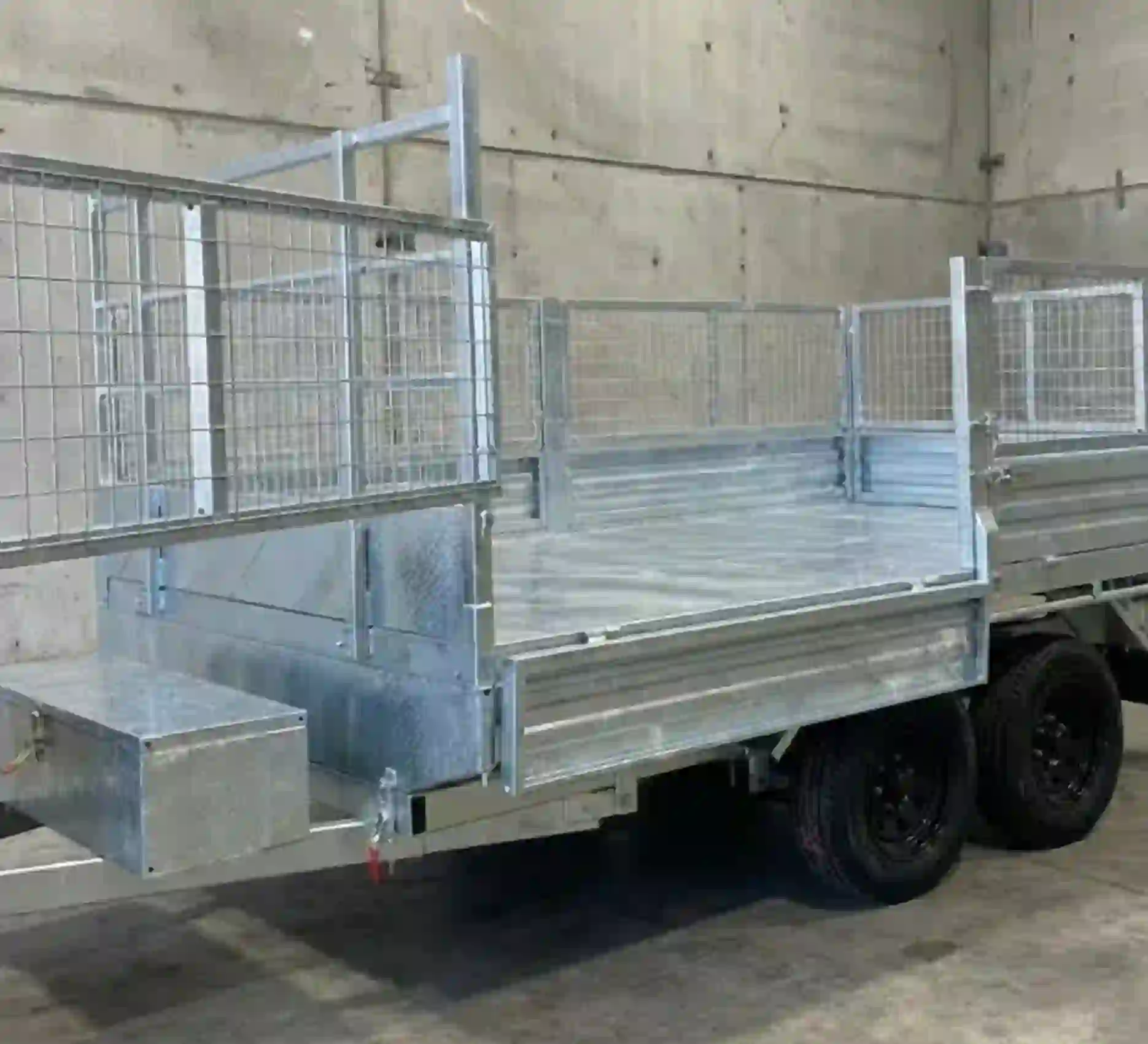

The body is hot-dip galvanised for strength and corrosion resistance. It runs on dual 50mm solid Dexter axles with 12-inch electric brakes on all wheels and a breakaway system, and a 1,800mm drawbar in 150 x 50mm RHS keeps it stable on the road. Both sizes come with 600mm full-height cages with removable sides, heavy-duty load ramps, a heavy-duty jockey wheel and a 1,200mm aluminium front toolbox that locks with a padlock. The 10x6 has a 3,000 x 1,800mm tray with 400mm sides and a rear barn door. The 12x7 has a larger 3,600 x 2,100mm tray with 300mm sides.
With up to 2,200kg of payload on the 10x6 and 2,000kg on the larger 12x7, the tipper suits landscapers, earthmovers, builders and property owners hauling:
The 600mm cage lifts the capacity for lighter, bulky loads like green waste.

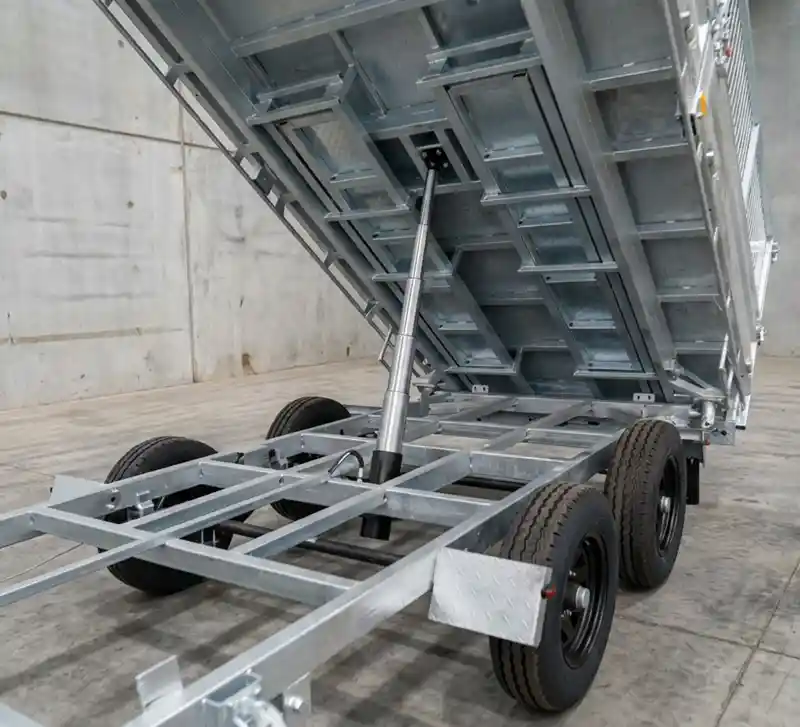

A 5-tonne, 5-stage ram lifts the tub smoothly, powered by an onboard 12V battery. A solar charger keeps the battery topped up between jobs, so there's no need to hook up to the tow vehicle or a generator to tip. LED lighting with a 7-pin plug and 2 x 13mm safety chains come standard.
Collect your tipper from our yard at 11 Jade Dr, Molendinar, or we'll deliver it, including to Brisbane, Sydney, Melbourne, Perth, regional Queensland and the Northern Territory. Delivery is quoted to your postcode with your trailer quote.
Both sizes have a 3,500kg ATM. The 10x6 carries up to 2,200kg (1,300kg tare) and the 12x7 up to 2,000kg (1,500kg tare).
A vehicle rated to tow at least 3,500kg, fitted with an electric brake controller. A brake controller is required at this weight to operate the trailer's electric brakes.
A 12V battery drives a 5-tonne, 5-stage hydraulic ram, and a solar charger keeps the battery topped up between jobs.
Yes. It's hot-dip galvanised.
Yes. It's built to the Australian Design Rules and comes with its compliance plate, plus a 1-year warranty.
